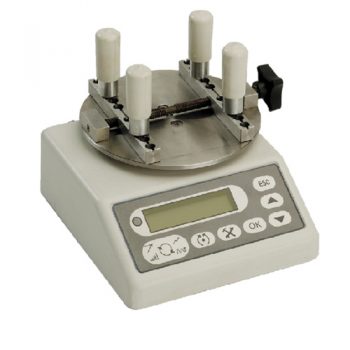

Product Description

Key Features

• Drip proof, durable and portable
• Accurate digital measurement of bottle top torque (sigma, mean and range)
• 200 date and time stamped reading memory
• Data can be downloaded to PC or printer
• Programmable torque threshold for fast and easy testing

Specifications:

Accuracy
± 0.5% of rated maximum transducer capacity

Overload Capacity
125% of stated maximum transducer capacity

Zero Drift
<0.1% of rated maximum transducer capacity Operating Temperature Range
+5 +40 degrees Celsius

Temperature Stability
± 0.1% per degree Celsius

Sealing
IP40

Humidity
5% to 75% non condensing

Serial Interface
9 way female ‘D’ connector

Frequency Response
User selectable in 6 steps from 68Hz to 4385Hz

Calibration
Issued with calibration certificate traceable to national and international standards. 12 months typical recalibration interval

Servicing
Crane Electronics Ltd offer a full repair facility and calibration to UKAS and international standards

Power
Two type ‘C’ cells, rechargeable batteries (charger not included), main powered (needs optional power supply)

Weight
3Kg

Construction
ABS cover; Steel base

Output
Serial dump – no handshaking (USB)

Dimensions
200mm (W) x 208mm (D) x 126mm (H) APPROX.
