Efficiently remove badly squeezed or bent rivets in seconds — without damaging the work piece…

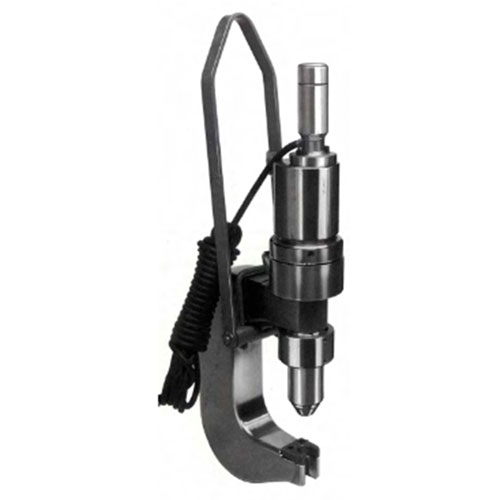

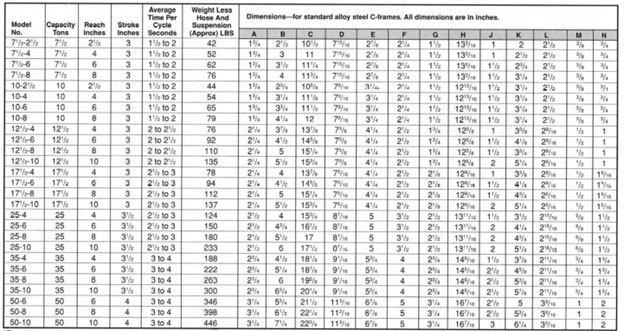

Now you can remove a badly squeezed or bent rivet in seconds. And not only that, you can remove it without damaging the workpiece or the hole. Hy-Power de-riveters incorporate all of the world class design features of Hy-Power riveters, see page 6. Deriveters are available in standard portable models from 7½ to 100 tons powered by 5000 psi Hy-Power generators.
How the De-Riveter works:
- The locating sleeve on the ram is positioned over the manufactured rivet head.
- The ram advances, bringing the C-frame anvil up against the plate with its U-slot surrounding the offset rivet head. The ram continues advancing, punching out the rivet.
- The ram returns, carrying the rivet head which is stripped from the punch when the ram is fully retracted.
