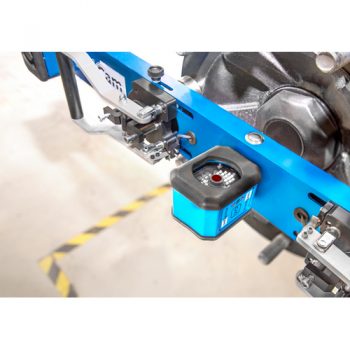

Axle Alignment System
This system is designed for axle manufacturers to pre-align toe-in. The efficient and durable design of the system allows it to measure toe, camber as well as max turn individually on both sides. As the system is self-calibrating in every measurement cycle, it provides extremely high measurement accuracy.
Axle measurements are recorded and saved in a database in relation to each axle’s serial number. This documentation is valuable for quality control purposes. Optionally an interface to the torque runner which is used for clamping can be incorporated into the system. With this feature it is only possible to finish an alignment process when the required torque is achieved and the measurement value is within tolerance limits.
This system requires very little floor space since the main components are two adaptors placed on the axle combined with a PC. It is very easy to install on the flow of an axle assembly line.
